La première solution de tracking live 100% automatisée et beaconless

K SYSTEM

The first 100% automated and beaconless

live tracking solution

Play video

Kapta, le capteur de la solution de tracking
icon-gif

Real-time tracking

Our technology captures and transmits all position and speed data of performers on stage in real time and in 3D.

icon-gif

Beaconless

No sensors, no beacon, no tags! No equipment on performers is required for tracking.

icon-gif

Intelligent identification

The system can automatically identify each performer from one stage to another. Once tracked, each performer is recognized.

icon-gif

Plug & Play

A fast and intuitive set-up: a single sensor rigged up allows the tracking of all performers.

icon-gif

Scalability

A technology designed to adapt to all venues, indoors and outdoors.

icon-gif

Accuracy & Reliability

Accuracy of tracking in the centimeter range for an optimal and reliable result. A technology designed for the stage and its complex environments.

An innovative ecosystem

A tracking solution designed specifically for live experiences that can be quickly and easily integrated into your projects.

These patented technologies are the result of more than 3 years of research and development by Naostage’s teams of researchers and engineers.

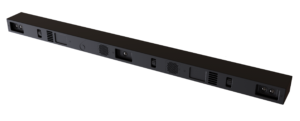

KAPTA

A sensor made up of multi-spectral cameras (visible, near infrared and thermal). It hangs above the stage area and scans the space in 3D and in real time.

KORE

A server running a unique AI trained by "deep learning" over thousands of hours of shows.

Kratos, le logiciel de la solution de tracking K SYSTEM

KRATOS

The user software controls the entire system, manages automations, and sends tracking data in real time to third-party audiovisual systems (sound, lighting, video, media, etc.).

écosystème de la solution de tracking K SYSTEM
Kapta, le capteur de la solution de tracking K SYSTEM

KAPTA

a 3D
sensor

Specifications

Dimensions

1560 x 120 x 80 mm

Weight

12 kg

Max. power consumption

220 W

Connectivity

Power : PowerCON TRUE 1 TOP
Data : etherCON (Cat6a)

Rigging

2 standard clamps

15m

Max. rigging height

20m x 12m

Size of tracking area at 8m

Want to know more?

Contact us

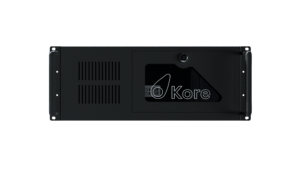

KORE

tracking intelligence
in a single unit

Specifications

Dimensions

Standard 19' 4U (depth : 45 cm)

Max. power consumption

1000 W

Data

1 Ethernet 10 Gbps + 1 Ethernet 2,5 Gbps
+ 1 Ethernet 1 Gbps

2

Max. number of KAPTA sensors

16

Max. number of tracked performers

<10cm

Tracking accuracy

Want to know more?

Contact us

KRATOS

an intuitive and complete
interaction design software

icon-gif

Calibration

20 sec.
Calibrate your 3D space and each KAPTA sensor in less than twenty seconds

icon-gif

Target Patcher

Design your show and assign each of your performers to detections from KORE.

icon-gif

Zones

Design your stage, create event zones for effects and automations.

icon-gif

Actions

Create scenarios, interactions and cues thanks to actions.

icon-gif

Modules

Manage outputs to your audiovisual equipment thanks to dedicated modules.

PSN

OSC

Telnet

sACN

Art
net

HTTP

UDP

TCP
