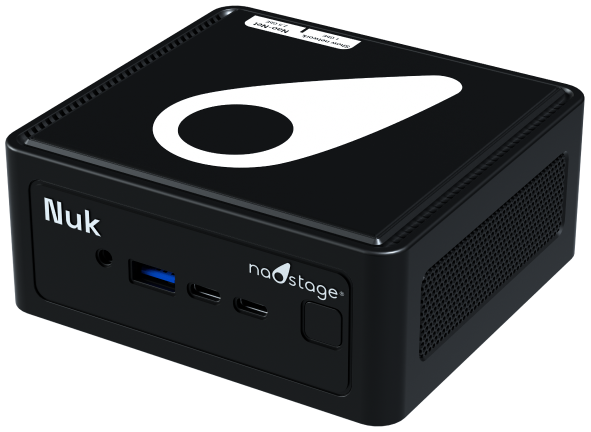

NUK is a compact, high-performance computer preconfigured to run Naostage’s KRATOS show-control software.
Optimised for real-time processing, it is suitable for both mobile and fixed installations.
Built on a custom OS and equipped with the necessary ports and connectivity features, it serves as a reliable and scalable manual tracking station for K SYSTEM Flow.
Up to 4KAM units or 1 KAPTA unit can be connected simultaneously to NUK for manual tracking across large areas.
NUK is supplied with a 3D control device for optimal manual tracking.
It also comes with a VESA mount, allowing it to be discreetly installed behind a monitor.
K SYSTEM Flow
NUK
Processing unit
Description
Available Solutions
Characteristics
Dimensions (L × W × H)
117.5 x 110 x 52.5 mm
Weight
800 g
Power supply
90 W, 19 V DC – 4,74 A
Protection class
IP20
Operating temperature range
0 - 40 °C
Number of KAM and KAPTA units supported for manual tracking4 KAM units or 1 KAPTA unit
4 Kam or 1 Kapta connected
3D control device supported simultaneously
2
Connectivity (front)
1 × USB 3.2 Gen 2 Type-A
2 × USB4 Type-C
1 × 3.5 mm audio jack
2 × USB4 Type-C
1 × 3.5 mm audio jack
Connectivity (rear)
2 × USB 3.2 Gen 1 Type-A
2 × HDMI 2.1
2 × RJ45 LAN ports: 1 GbE and 2.5 GbE
1 × DC jack
2 × HDMI 2.1
2 × RJ45 LAN ports: 1 GbE and 2.5 GbE
1 × DC jack
Accessories
90 W power adapter
3D control device (3D mouse)
VESA mount
3D control device (3D mouse)
VESA mount
